　　 Engineers believe that different industries, due to the nature of their production operations, the characteristics of the process,

have different built environments, different spatial structures, different temperature, humidity and other factors, and these

factors have a crucial impact on the selection of products.

N series textile material properties

　　● Flame retardant: Class B fire, permanent flame retardant, can provide class A non-combustible material

　　● Permeability: non-permeable material. Air permeability is 0

　　● Washable: can be cleaned more than 50 times, no flocculent fabric precipitate

　　● Anti-bacterial and anti-mildew: treated with anti-bacterial and anti-mildew

　　● High strength, high toughness, excellent friction resistance.

　　● Conventional weight: 320gsm, 280gsm, 260gsm, 235gsm.

　　● Implementation standards: EN ISO 11611, EN ISO 11612, IEC61482-1-2.

　　 Application: General ventilation systems and heating systems

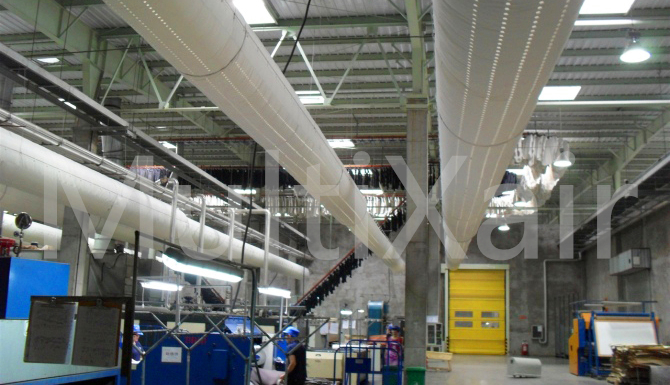

　　 Industrial field: general machinery workshop, textile workshop, logistics warehouse

N Series air distribution system specifications and models

Model	Airflow mode	Thickness mm	Weight g/m2	Shrinkage	Fire protection certification	Corrosion resistance	Resistance to condensation	Shape	Color
N-1	The mesh strips are out of the air	0.25-0.45	265-310	≤0.2%	A/B	Yes	No	4 shapes available	Color cards are optional
N-2	Air comes out of the orifice	0.25-0.45	260-290	≤0.2%	A/B	Yes	No	4 shapes available	Color cards are optional
N-3	Air out of the nozzle	0.25-0.45	260-320	≤0.2%	A/B	Yes	No	4 shapes available	Color cards are optional
